Industrial power supplies withstand harsh automation environments

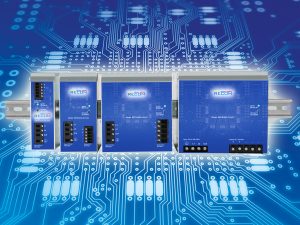

Recom Redin-3AC

The power supply series delivers 120, 240, 480 or 960W at a stable 24V output (trimmable from 22.5 to 29.5V DC)  with 40mV ripple. The units can be connected in parallel for power-hungry applications and redundancy, without requiring additional components, due to built-in droop mode regulation with current limitation to guarantee equal load distribution.

The power supplies have a power feedback function at over-temperature to protect again overload. The regulated power limitation allows a stable start-up of non-linear loads.

Modules are certified to IEC/UL508 for industrial control equipment, and EN/IEC/UL60950. They carry a five-year warranty from the company.

Samples are available now from authorised distributors.

a stable 24V output voltage (trimmable from 22.5 – 29.5VDC) with only 40mV ripple. For power-hungry applications and redundancy purposes, the units can be connected in parallel with no need for additional components due to their built-in droop mode regulation with current limitation to guarantee equal load distribution. These intrinsically-safe PSUs are protected against overload with a power feedback function at overtemperature. The regulated power limitation also allows a stable startup of non-linear loads. These modules are certified to IEC/UL508 Standard for Industrial Control Equipment and EN/IEC/UL60950 for worldwide usage and come with a 5-year warranty. Samples are available from all authorized distributors.
